Gas-to-liquid plate heat exchangers
From exceptionally high temperatures to media with extremely asymmetrical flow rates, Alfa Laval’s gas-to-liquid portfolio handles more than other plate heat exchangers. Built with a revolutionary asymmetric “dimple” plate design, our gas-to-liquid models provide efficient heat recovery and very low pressure drop in gas applications – all within a significantly smaller footprint than tubular technologies.
Handle more with brazed gas-to-liquid technology
- The lightweight construction offers much greater thermal efficiency and is typically 75% smaller than comparable shell-and-tubes
- Available as copper-brazed (GL and GLX) and 100% stainless steel (AlfaNova GL)
- Supports gas temperatures up to 750°C with no risk of thermal fatigue. For some applications, temperatures above 1400°C are possible.
- Very low pressure drop in asymmetric applications thanks to patented “dimple” plate design
- Fast global delivery thanks to Alfa Laval’s advanced production and logistics capabilities as well as a stock of standard gas-to-liquid models
Customer cases
Boosting CHP efficiency with gas-to-liquid technology
A compact, efficient pre-cooler for compressed air

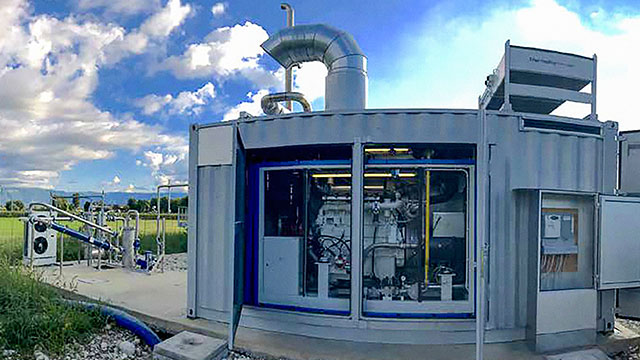

A compact and efficient solution for micro-CHP
Sustainable heat recovery in compressed air systems
Et brenselcellesystem bygget med Alfa Laval platevarmevekslere – Bærekraftig, trygt og kostnadseffektivt
Da den tyske leverandøren av fornybar energi HEE Technologies GmbH designet et brenselcellesystem for kombinert varme og kraft (CHP), valgte de bevisst å bruke Alfa Lavals platevarmevekslere til kjøling av brenselcellestabler og eksosvarmegjenvinning. Systemet bruker hydrogen som energikilde, noe som gjør det bærekraftig, trygt og kostnadseffektivt.

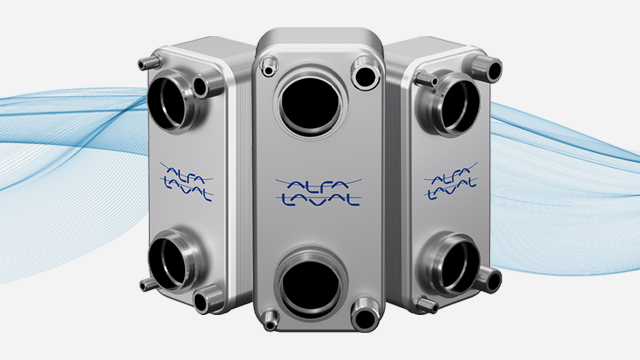

Meet the new AlfaNova GL50
The GL50 is an asymmetric gas-to-liquid plate heat exchanger made from 100% stainless steel. It is small enough to hold in one hand, but can handle gas flows of 250 cubic meter per hour, as well as inlet gas temperatures up to 750°C, with exceptional performance.
A heat exchanger that can handle more
The GL product line of Alfa Laval gas-to-liquid heat exchangers provides maximum efficiency within an ultra-compact footprint. The result is all new possibilities in a huge number of applications and industries.
Meet the full gas-to-liquid portfolio
Want to learn more about what our unique gas-to-liquid technology can offer in your business? Read about relevant applications and get technical specifications by downloading our portfolio overview.
Sats på bærekraftige løsninger
Se for deg en mer bærekraftig verden. En verden der det kreves mindre for å produsere til og med mer. En verden der vi effektivt oppfyller det økende energibehovet og samtidig reduserer CO2-utslippene. Forestill deg en verden der vi kan utnytte kreftene i naturressursene, samtidig som vi bevarer dem. Hos Alfa Laval ikke bare forestiller vi oss denne verdenen. Vi bygger det – sammen med kundene og partnerne våre.
See for yourself
As efficient technology with a very small footprint, Alfa Laval’s GL plate heat exchangers can be used in positions throughout your process. View this example animation to learn more and see for yourself just how compact they truly are!
Your hub for the latest in heating and cooling
With expertise from decades of experience in heat exchange, Alfa Laval offers knowledgeable resources for today’s heating and cooling challenges. Discover answers to complex questions on everything from energy efficiency to natural refrigerants, along with helpful tools that make it simpler to find the right technology for your application.
Contact us
Do you need the power to handle more in your gas cooling applications? Contact us today to learn more about the complete portfolio of Alfa Laval gas-to-liquid plate heat exchangers. Our experts can work with you to find the optimal model to fit your specific needs.
