TJ
Alfa Laval’s range of Rotary Jet Head tank-cleaning devices provide exceptional cleanability, better end-product quality, greater overall output and up to 70% reduction in operating costs. They are designed for hygienic applications, such as food, dairy, personal care and beverages.
High impact quality assured cleaning in a 360° repeatable cleaning pattern
- Avoid contamination with effective cleaning performance and superior self-cleaning features
- Cost efficient and sustainable solution due to reduced water and chemicals requirements
- More available production time because of reduced cleaning time
- Easy to service and maintain – no special tools required
- Control of CIP through validated cleaning

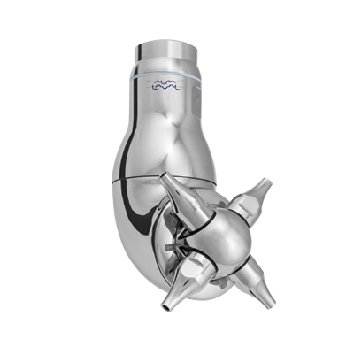

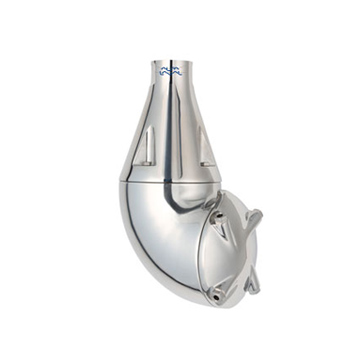

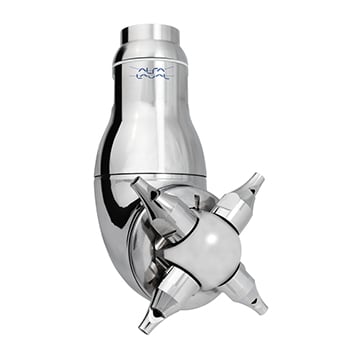

The Alfa Laval TJ range of rotary jet heads for your tank cleaning needs
Effektiv tankrengjøring med lave driftskostnader
Den sterke strålen genererer en høy mekanisk kraft og dekker 360° for effektiv fjerning av restprodukter og andre rester for å gi de beste hygieniske forhold for produksjon. Når kraften som genereres av det roterende jethodet øker, reduseres vannforbruket, noe som fører til betydelige kostnadsbesparelser som illustrert i diagrammene. (basert på Dr. Sinners rengjøringsfilosofi.
- Kostnadsbesparelser (vann, kjemikalier): 70 %*
- Tidsbesparende = mer produksjonstid: 60 %*
* sammenlignet med tradisjonell rengjøring med statiske spraykuler

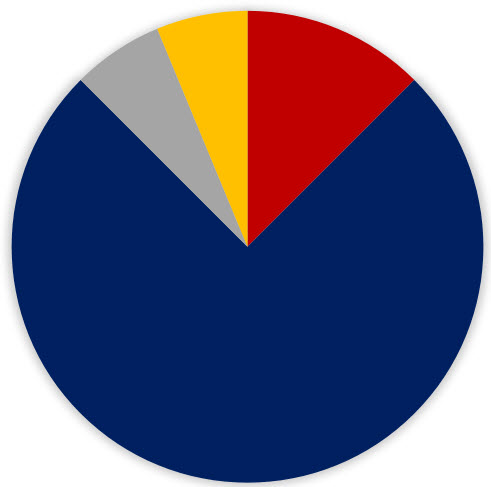

Statiske spraykuler

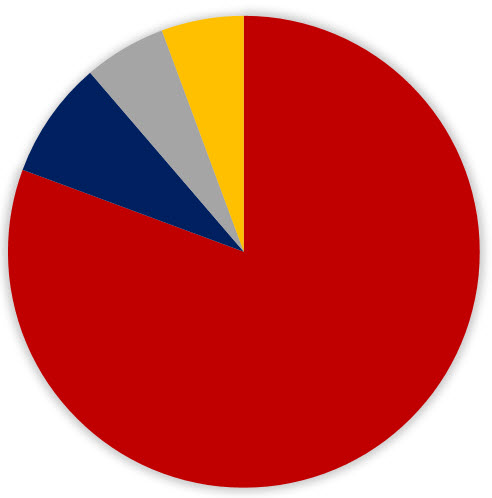

Alfa Laval TJ20G / TJ40G
Blått = Vannforbruk/tid
Rød = Mekanisk tiltak
Gul = temperatur
Grå = kjemikalier
Hvordan det virker
Dynamic tank cleaning machines
The flow of the cleaning fluid makes the nozzles rotate around the vertical and horizontal axes. In the first cycle, the nozzles deposit a coarse pattern on the tank surface. Subsequent cycles gradually add density to the pattern, until full coverage is reached after eight cycles. The operation is fully automatic and provides users with effective quality assurance guarantees in tank cleaning, complete with all the necessary documentation.

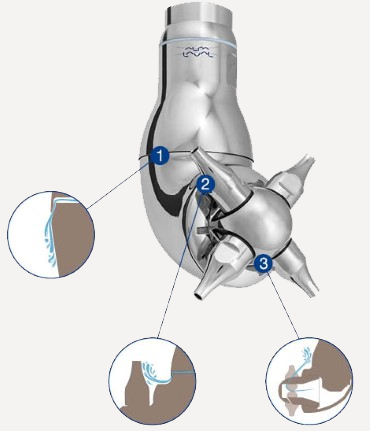

Complete self-cleaning system
Not only does the Alfa Laval TJ range of rotary jet heads provide spotless cleaning of the tank interior, it also cleans itself – inside and out. The hygienic self-cleaning design ensures that the flow of the cleaning fluid covers the external surfaces of the rotary jet head to reduce the risk of cross contamination and potential product loss or recalls.
1. Overlap ensures self-cleaning of the body
2. The nozzle’s concave shape ensures self-cleaning of the nozzle itself
3. Through two holes in the hub, jet streams ensure cleaning of the cone
Low pressure drop
The low pressure loss over the machine results in increased cleaning efficiency compared with other tank cleaning machines running at the same inlet pressure. This results in lower cleaning costs as the unit can run at lower pressure/flow.
Part of a broad tank equipment range
Alfa Laval offers a comprehensive range of tank equipment intended for hygienic applications in the dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.
For a broader tank equipment range, explore the different product categories: rotary jet heads, rotary spray heads, tank accessories and tank covers.
